AcoustiCHEK Calibrator, Class 2, for 1/2-inch Microphones

Please allow your location to be read or register an account with SKC Inc. to view pricing
Part Number: 703-002

AcoustiCHEK Calibrator, Class 2, for 1/2-inch Microphones Overview

AcoustiCHEK Calibrator, Class 2, for 1/2-inch microphones, includes AA batteries and Certificate of Manufacturer Calibration

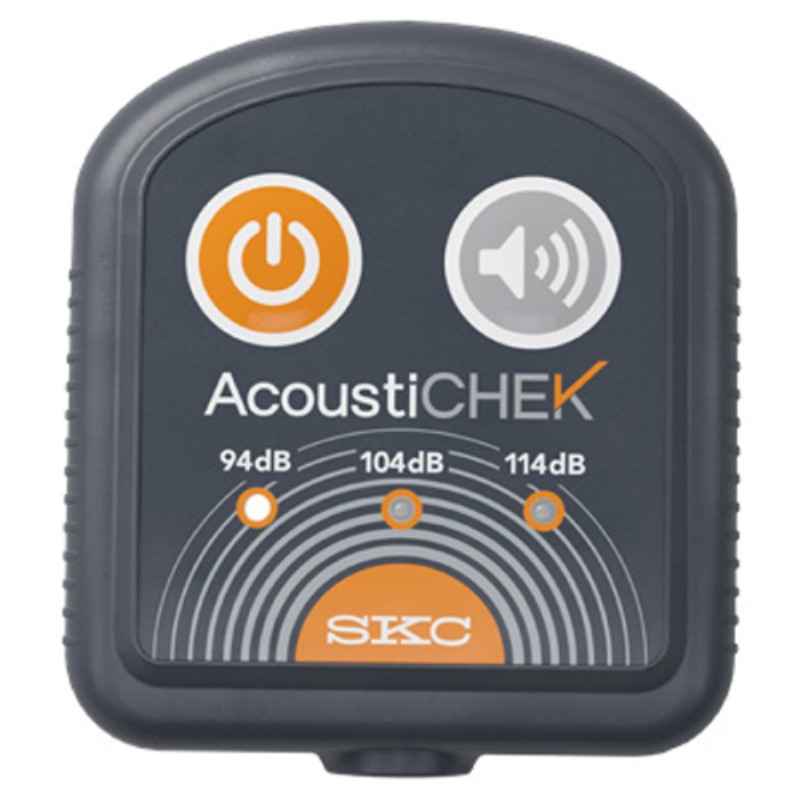

The SKC AcoustiCHEK Calibrator is specifically designed for easy calibration of the SKC NoiseCHEK Dosimeter and SoundCHEK Essential/SoundCHEK Connect Sound Level Meters with ½-inch microphones.

Performance Profile

Class 1 AcoustiCHEK Calibrator Cat. No. 703-001

  • Output: 94, 104, and 114 dB
  • Calibration Frequency: 1 kHz (± 0.7%)
  • Accuracy/Tolerance: ± 0.25 dB
  • Harmonic Distortion: < 1.6%
  • Operating Temperature Range: 14 to 122 F (-10 to 50 C)
  • Dimensions: 3.1 x 2.7 x 1.2 in (7.8 x 6.8 x 3.0 cm)
  • Weight: 4.6 oz (130 gm)
  • Standards: IEC 60942:2017, BS EN IEC 60942:2018, ANSI S1.40 2006

Class 2 AcoustiCHEK Calibrator Cat. No. 703-002

  • Output: 94, 104, and 114 dB
  • Calibration Frequency: 1 kHz (± 1.7%)
  • Accuracy/Tolerance: ± 0.4 dB
  • Harmonic Distortion: < 3%
  • Operating Temperature Range: 32 to 104 F (0 to 40 C)
  • Dimensions: 3.1 x 2.7 x 1.2 in (7.8 x 6.8 x 3.0 cm)
  • Weight: 4.6 oz (130 gm)
  • Standards: IEC 60942:2017, BS EN IEC 60942:2018, ANSI S1.40 2006
  • Noise Equipment Type : Acoustic Calibrator
  • Class : Class 2
  • Octave Band Filter : No
  • Connectivity : No

Acoustic Calibrators for SKC Noise Instruments

The SKC AcoustiCHEK Calibrator is specifically designed for easy calibration of the SKC NoiseCHEK Dosimeter and SoundCHEK Essential/SoundCHEK Connect Sound Level Meters with ½-inch microphones. In the lab or in the field, AcoustiCHEK has you covered.

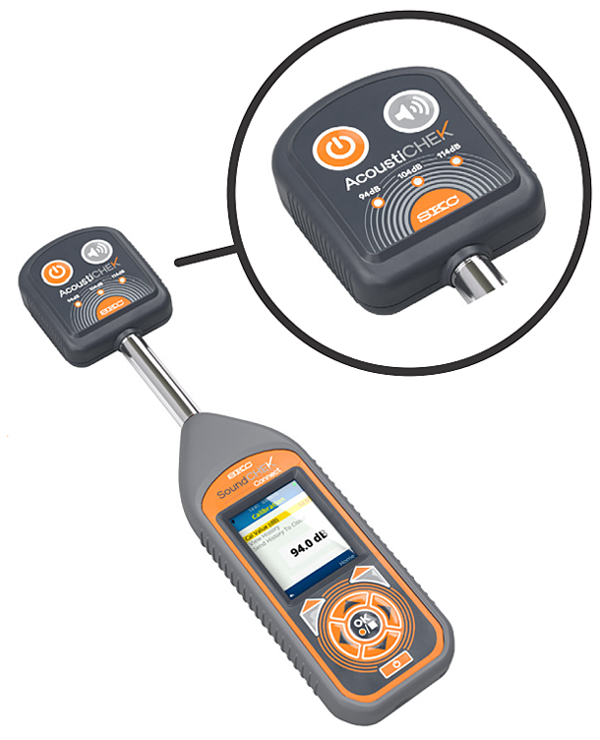

AccoustiChek with Sound Connect

Calibration — the foundation of accurate noise measurement CALL SKC!
