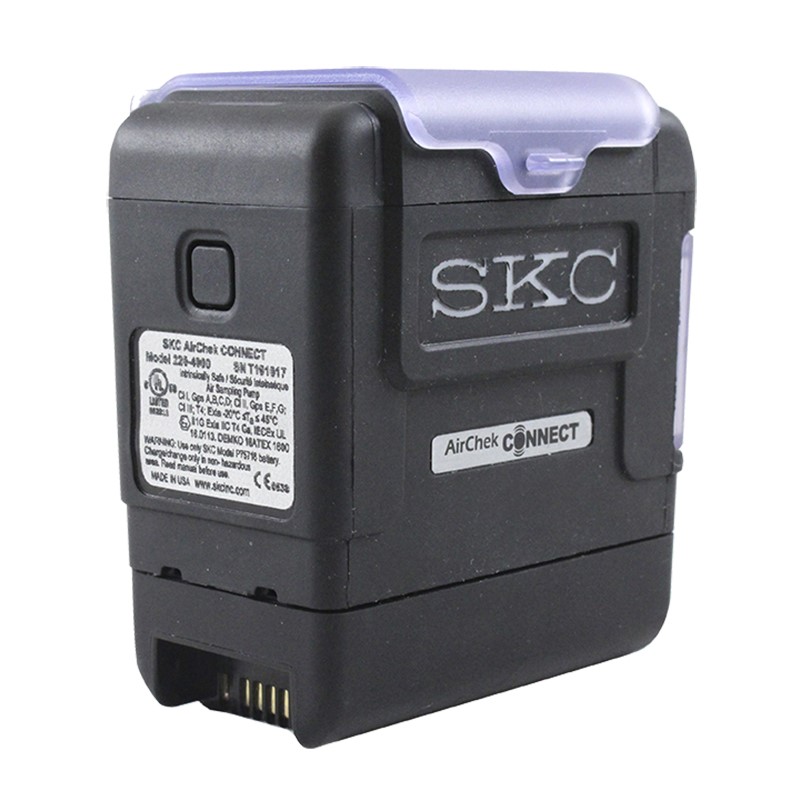

AirChek Connect Pump only

Please allow your location to be read or register an account with SKC Inc. to view pricing
Part Number: 220-4000

AirChek Connect Pump only Overview

AirChek Connect Pump only with Li-Ion battery pack and screwdriver set; requires Standard Charging Cradle and power supply; see kits or accessories; requires 877-94 to use Bluetooth with PC

The AirChek Connect touch screen pump is the ultimate in sample pump flexibility, ease of operation, and connectivity. In addition to providing accurate airflows from 5 to 5000 ml/min, AirChek Connect features Bluetooth connectivity to PC, tablet, and mobile phone. Use with DataTrac Pro Software and your PC for pump monitoring, programming, and data management or with the SmartWave app on your iOS/Android devices for remote pump operation and monitoring. AirChek Connect is backed by decades of SKC experience and incorporates the latest sampling technology.



Performance Profile

Flow Range
• Constant flow from 1000 to 5000 ml/min (5 to 500 ml/min requires low flow holder)
Compensation Range (Back Pressure Capability)
• 5000 ml/min at 20 inches water back pressure
• 4000 ml/min at 30 inches water back pressure
• 3000 ml/min at 40 inches water back pressure
• 2000 ml/min at 50 inches water back pressure
• 1000 ml/min at 60 inches water back pressure
Power
• Removable rechargeable lithium-ion (Li-Ion) battery, 7.4 V, 2.6 Ah, 19.2 Wh or AC using cradle
Run Time
• 40+ hours at 2000 ml/min*
• 15+ hours at 5000 ml/ min*
• Indefinite run from charging cradle
Accuracy
• Flow control: ± 5% of set-point after flow rate verification to desired flow

• Atmospheric pressure: ± 0.3 in Hg

• Temperature: ± 1.0 C
Display/Parameters
• High-contrast backlit LCD/Time, date, battery status, flow rate, sample volume, temperature, atmospheric pressure, back pressure, programmed run remaining time, and elapsed run time
User Interface

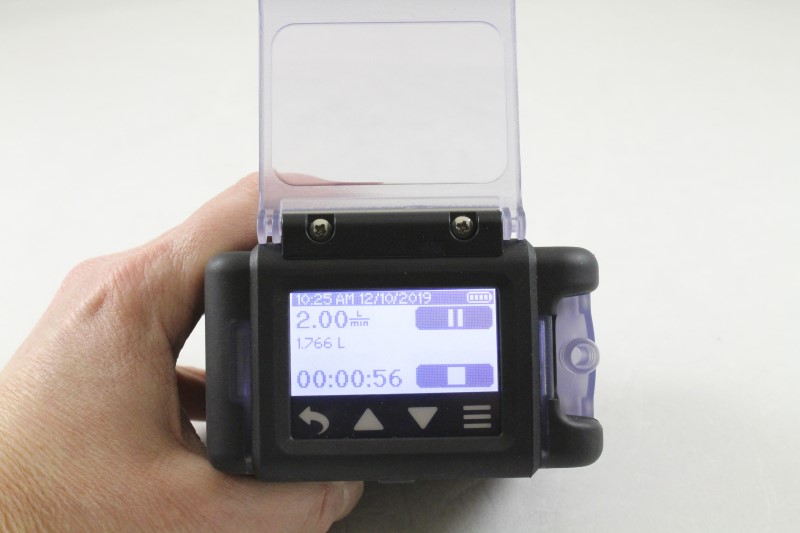

• Eight-area capacitive touch screen with auto-dim and locking options
Sound Level
• Average 51.7 dB at 3-ft (1-m) distance using a 37-mm, 0.8-µm MCE filter cassette
Tubing
• Requires ¼-inch ID tubing
Dimensions/Weight
• 4.1 x 3.7 x 2.8 in (10.4 x 9.4 x 7.1 cm),19.4 oz (550 gm)
Certifications/Markings



• Intrinsic safety (SKC Cat. No. 220-3000 operated
with SKC Battery Pack P75718) Class I, Groups
A, B, C, D; Class II, Groups E, F, G; Class III, T4;
Class I, Zone 0, AExia IIC T4 Ga; Exia IIC T4 Ga;
-20°C ≤ Ta ≤ 45°C Ex II 1G; Exia IIC T4 Ga; IECEx
UL 19.0100, UL22UKEX2351, UKCA 0843, DEMKO
19ATEX 2288, CE 0539
• Designed to meet ISO 13137:2022
• RoHS compliant

* Results obtained using a new pump, new fully charged battery, and 37-mm 0.8-µm MCE filter. Pump and battery performance may vary.


  • Pump Flow Rate : 5 to 5000 ml/min
  • PC Compatible : Yes
  • Programable : Yes
  • Intrinsic Safety : Yes
  • Battery Type (Power) : Li-Ion
  • Approx Run Time : 40
Intrinsically Safe
Operation Touch keypad Touch screen Color touch screen Touch screen
Programmable
PC Compatible – Download History
Bluetooth® Connection with PC and Mobile
SmartWave Mobile App
Compensates for Changes in Temperature and Atmospheric Pressure
Flow Fault/Auto-restart
CalChek® Automatic Flow Rate Verification/Calibration Feature
