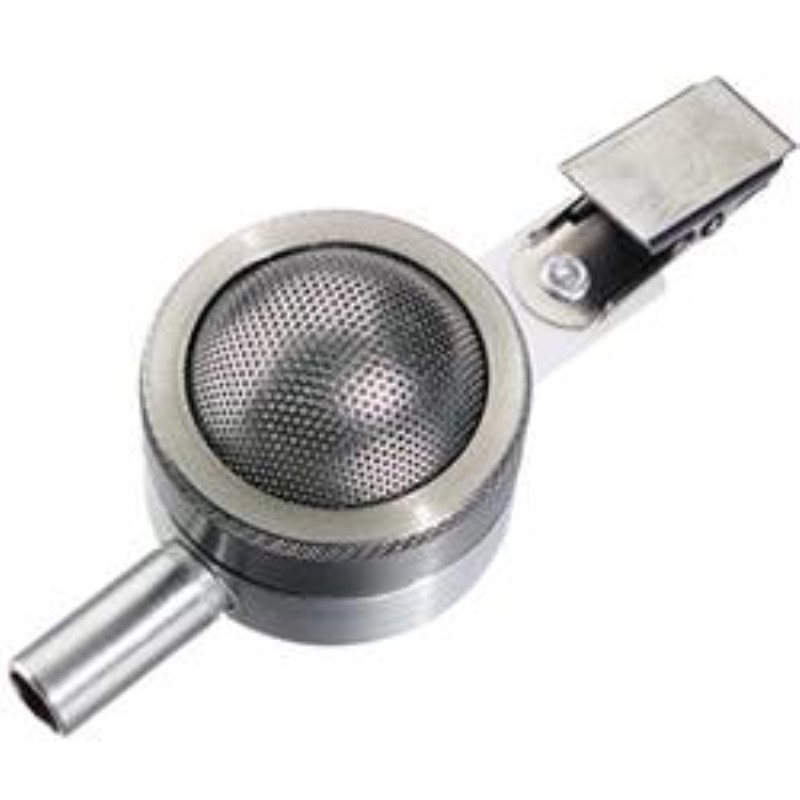

Button Sampler, for Inhalable PM Sampling

Please allow your location to be read or register an account with SKC Inc. to view pricing
Part Number: 225-360

Button Sampler, for Inhalable PM Sampling Overview

Button Aerosol Sampler, low-level personal or area inhalable PM sampling; requires a 25-mm filter with pore size of 1.0 µm or higher to reduce back pressure
The Button Sampler, with its porous curved-surface inlet, is designed to improve the collection characteristics of inhalable dust, including bioaerosols for viable or non-viable analysis. Use the Button Sampler for low-level personal or area sampling of inhalable dust.


Performance Profile

Flow Rate 4 L/min*
Sampling Inlet Conductive stainless steel
Body Aluminum
Support Screen Stainless steel
Clip Stainless steel and nylon
O-rings PTFE (inlet) and BUNA-N (body)
Filter 25 mm**
Inhalable Dust Gravimetric (GR)
Fungal Spores Epifluorescence microscopy, immunoassay, or polymerase chain reaction (PCR)
Metals X-ray Fluorescence (XRF)
Tubing 1/4-in ID
* The Button Sampler closely follows the ISO 7708/CEN inhalability curve at 4 L/min. This provides optimum sampling.
** A filter pore size of 1.0 µm or larger is recommended for use with the Button Sampler to reduce back pressure.



  • Sampler Class : Inhalable
  • Cut-point : 100 μm
  • Flow rate : 4 L/min
  • Disposable : No
  • Sampler Type : Cassette
  • Calibration Adaptor? : Yes
  • Collection Method : Filter
  • Biological Sample Rate : 4 L/min



The reusable SKC Button Aerosol Sampler is a filter sampler with a porous curved-surface inlet designed to improve the collection characteristics of inhalable dust (< 100-µm aerodynamic diameter), including bioaerosols for viable or non-viable analysis. The curved, multi-orificed inlet, made of conductive stainless steel, reduces electrostatic effects and reduces sensitivity to wind direction and velocity. The proximity of the filter to the inlet minimizes transmission losses and provides equal distribution of particle loading and low intersample variation. The Button Sampler closely follows the ISO 7708/CEN sampling criteria for inhalable particulate mass at 4 L/min. A convenient conductive plastic transport case is available for shipping the filters to a laboratory for analysis.

Collection of Inhalable Bioaerosols
The SKC Button Aerosol Sampler provides superior collection of inhalable particles including bacteria and fungal spores. Use the Button Sampler with a 25-mm membrane filter such as MCE or PVC to collect bioaerosols for non-viable analysis. Using SKC gelatin filters with the Button Sampler helps to maintain the survival of stress-sensitive microorganisms during short sampling periods for viable analysis. Polycarbonate filters are ideal for sampling multiple bioaerosols. The Button Sampler is used with a sample pump capable of 4 L/min for personal inhalable particulate sampling following the ACGIH/ISO criteria.

Operation
The SKC Button Sampler is easy to operate. Simply unscrew the inlet section, remove the PTFE O-ring, place a conditioned and weighed 25-mm filter on the stainless steel support screen, replace the O-ring, and screw the inlet section back onto the sampler. Connect the Button Sampler to a personal sampling pump; clip the sampler onto a worker’s collar and the pump to the worker’s belt. Sample for the appropriate time period.

Button Aerosol Sampler with Calibration Adapter

An easy-to-use calibration adapter is available for the Button Sampler. Simply push the calibration adapter onto the Button Sampler inlet and connect the adapter inlet to a calibrator. Calibrate to 4 L/min.



About Using Gelatin Filters with the Button Sampler



For maximum microorganism survivability and superior collection of inhalable-size bioaerosols, use gelatin filters with the SKC Button Sampler. Combining the Button Sampler's exceptional filter collection uniformity and low intersample variation with the nurturing properties of gelatin filters creates a sampler that is most efficient at collecting bioaerosols for viable analysis.

References

Clark Burton, N., et al., “Physical Collection Efficiency of Filter Materials for Bacteria and Viruses,” Annals of Occup. Hyg., Sept. 2006, pp. 1-9

Kalatoor, S., Grinshpun, S., Willeke, K., "New Aerosol Sampler with Low Wind Sensitivity and Good Filter Collection Uniformity," Atmospheric Environment, Vol. 29, No. 10 (1995), pp. 1105-1112

Hauck, B., Grinshpun, S., Reponen, A., Reponen, T., Willeke, K., Bornschein, R., " Field Testing of New Aerosol Sampling Method With a Porous Curved Surface as Inlet," American Industrial Hygiene Association Journal, Vol. 58, No. 10 (1997), pp. 713-719

Gao, P., Chen, B., Baron, P., Soderholm, S., "A Numerical Study of the Performance of an Aerosol Sampler with a Curved, Blunt, Multi-Orificed Inlet," Aerosol Science and Technology, Vol. 36, 2002, pp. 540-553

Aizenberg, V., Reponen, T., Grinshpun, S., Willeke, K., "Performance of Air-O-Cell, Burkard, and Button Samplers for Total Enumeration of Airborne Spores," American Industrial Hygiene Association Journal, Vol. 61, Nov/Dec, 2000, pp. 855-864

Aizenberg, V., Grinshpun, S., Willeke, K., Smith, J., Baron, P., "Performance Characteristics of the Button Personal Inhalable Aerosol Sampler," American Industrial Hygiene Association Journal, Vol. 61, 2000, pp. 398-404

Wang, C., et al., "Field Evaluation of Personal Sampling Methods for Multiple Bioaerosols," doi.10.1371/journal.pone.0120308
