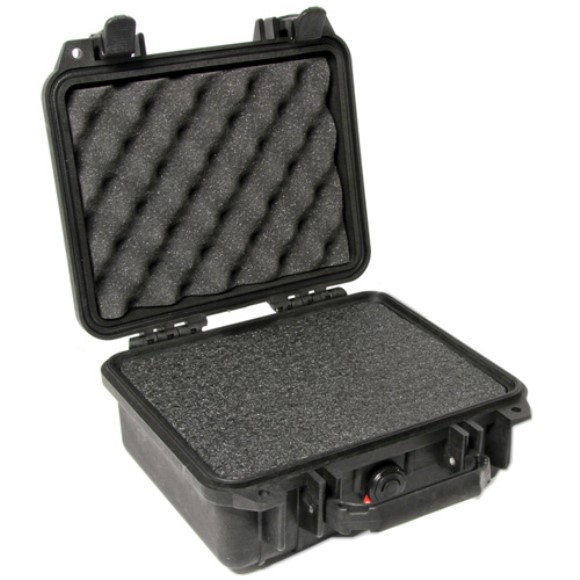

Draeger CMS Molded Plastic Case, for Draeger CMS Analyzer

The direct-reading Dräger Chip Measurement System (CMS) combines chemical-specific chips and an electronic analyzer for highly accurate and reliable gas and vapor measurements. With the flip of a switch, the Dräger CMS provides quick results that appear on an easy-to-read LCD. The Dräger CMS is ideal for industries where glass tubes cannot be used or where it is not cost-effective to keep a monitor on-hand that requires sensors and calibration.

CMS Chip

Each Dräger CMS chip contains 10 capillaries (10 test) filled with substance-specific reagent. A barcode on the chip is read by the analyzer optics to obtain information such as gas type, measuring range, and required measuring time. Gas type, part number, and batch number are printed on the chip for user convenience. CMS Chips are interchangeable without calibration. Chip calibrations are valid from one to two years. One 10-test chip is approximately the same cost as a box of detector tubes.

CMS Analyzer

The analyzer contains a pump mechanism, microprocessor, optics, and software. The optics read the barcode on an inserted chip and menu-driven instructions for the test appear on the analyzer's LCD. Each analyzer includes a data recorder that will hold the last 50 determinations in memory along with the time/date of sample and a location code. The CMS Analyzer is available with deep mine approval. Contact your SKC representative for more information.
