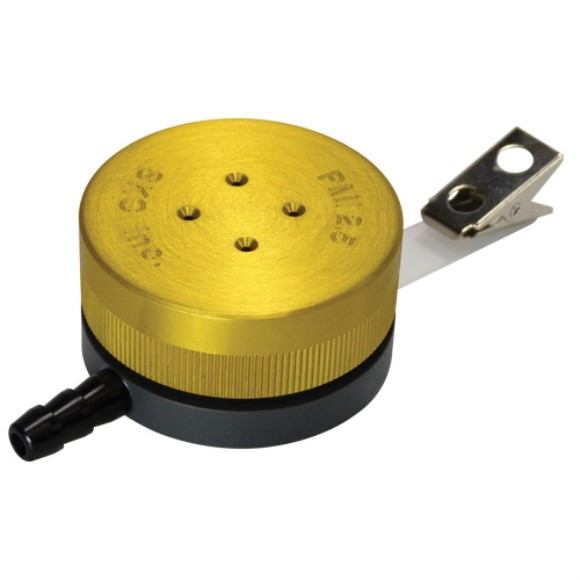

Personal Modular Impactor (PMI), PM2.5, 3 L/min

Please allow your location to be read or register an account with SKC Inc. to view pricing
Part Number: 225-352
Available for Rent
Would you like to rent the product?

Personal Modular Impactor (PMI), PM2.5, 3 L/min Overview

Personal Modular Impactor (PMI), single-stage impactor designed for highly efficient collection of PM2.5 at 3 L/min, includes impactor and filter cassette with support screen; requires collection media and impaction substrate, which are purchased separately The PMI closely follows PM2.5 as defined by EPA.

The SKC Personal Modular Impactor (PMI) Samplers are highly efficient for personal PM10, PM2.5, or PM Coarse (10-2.5) sampling and closely follow the PM2.5 and PM10 criteria defined by U.S. EPA. PMI Samplers are lightweight and compact with a convenient removable filter cassette and disposable pre-oiled impaction discs (no cleaning or greasing). The PMI PM10 model is easily converted with an accessory ring to sample PM Coarse (10-2.5). Use PMI Samplers with any constant flow pump at 3 L/min. SKC recommends the AirChek XR5000 Sample Pump.


Performance Profile

Flow Rate 3 L/min for all models
50% Cut-point 10 µm or 2.5 µm (model dependant)
Material Inlet: Precision-tooled aluminum
Exhaust: PVC
Filter Cassette: Delrin® with stainless steel support screen

O-ring: Inlet — PTFE
O-ring: Exhaust — BUNA-N

Final Collection Filter 37-mm filter, select filter material based on application
Impaction Substrate 25-mm pre-oiled, disposable porous plastic disc to reduce particle bounce or 25-mm filter for optional chemical analysis
Analyses Gravimetric and chemical
(without clip)
Diameter: 2 in (5.1 cm)
Height: 1 in (2.6 cm)
Weight: 2.5 oz (70.9 gm)
Tubing 1/4-inch ID

  • Sampler Class : PM2.5
  • Cut-point : 2.5 μm
  • Flow rate : 3 L/min
  • Disposable : No
  • Sampler Type : Impactor
  • Calibration Adaptor? : Yes

SKC Personal Modular Impactors
The patented (U.S. Patent No. 7,334,453) SKC Single-stage Personal Modular Impactors (PMIs) are designed for the highly efficient collection of PM10, PM2.5, or PM Coarse (10-2.5). The samplers are easy to use with their removable filter cassette and pre-oiled impaction disc. PMI media changes are as easy as removing the filter cassette and replacing it with one already loaded with a 37-mm final filter. The 25-mm pre-oiled impaction disc mounts directly on top of the filter cassette and reduces particle bounce for high collection efficiency. A 25-mm filter may be used as an alternative impaction substrate for gravimetric or chemical analysis of particles. The PMI Coarse model and the Coarse Ring accessory include a second filter cassette to allow collection of particles sized between 2.5 and 10 µm.

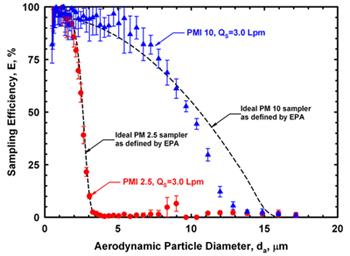

Chart: Collection Efficiency of PMI 2.5 and PMI 10 Samplers
Collection Efficiency of PMI 2.5 and PMI 10 Samplers
(Click to enlarge)
