Pocket Pump TOUCH with Charger

Please allow your location to be read or register an account with SKC Inc. to view pricing
Part Number: 220-1000TC-C

Pocket Pump TOUCH with Charger Overview

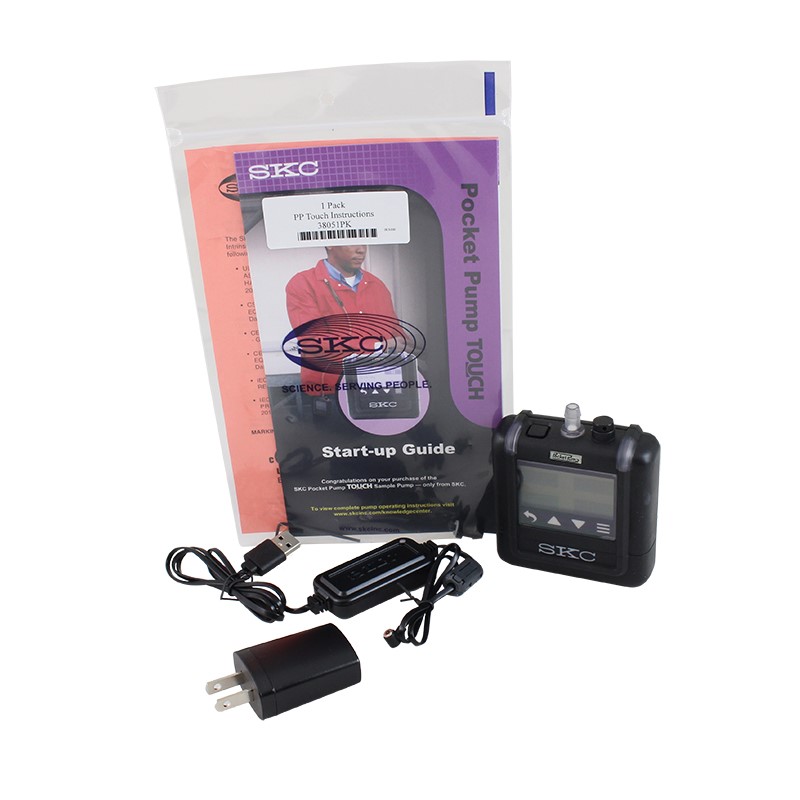

Pocket Pump TOUCH with Charger includes pump and single charger (USB cable and wall cube)

The Pocket Pump TOUCH personal air sample pump provides low flows from 20 to 500 ml/min for gas and vapor sampling. Pocket Pump TOUCH features touch screen operation, Bluetooth communication with the SmartWave mobile app and PC-based DataTrac Pro Software, powerful Li-Ion battery for 20+ hours run time at 500 ml/min, exhaust port for direct filling of sample bags, AC Adapter/charger, and more in a miniature pump that fits in your pocket. Pocket Pump TOUCH is UL Listed for intrinsic safety.



Performance Profile

Flow Range in Constant Flow Mode 20 to 500 ml/min
Compensation Range in Constant Flow Mode 20 to 500 ml/min up to 20 inches water back pressure
Pressure Range in Constant Pressure Mode 1 to 20 inches water
Flow Control System Corrects for changes in back pressure, temperature, and atmospheric pressure
Power Removable rechargeable lithium-ion (Li-Ion) battery, 3.7 V, 2.6 Ah, 9.6 Wh or USB charger
Run Time (Li-Ion) 20+ hrs at 500 ml/min up to 20 inches water back pressure, extended run times available with charger
Tested using 37-mm 0.8-μm MCE filter with new pump and battery. Pump performance may vary.
Charging Time
(varies with battery capacity and level of discharge)
< 10 hrs (< 4.5 hrs to 80%)
Accuracy Constant flow control: ± 5% of set-point or ± 3 ml/min, whichever is higher
Atmospheric pressure: ± 0.3 in Hg
Temperature: ± 1.0 C
Real-time clock: ± 1%
Constant pressure mode: Reading ± 0.5 inch water
Temperature Ranges Operating: 32 to 113 F (0 to 45 C)
Charging: 32 to 113 F (0 to 45 C)
Storage: -4 to 113 F (-20 to 45 C)
Humidity Range < 95% RH, non-condensing
Altitude Corrects flow for changes in temperature (32 to 113 F [0 to 45 C]) and ambient pressure up to 15,000 feet (4,572 meters) above and down to 2,300 feet (701 meters) below sea level
Flow Fault After 3 to 10 seconds of restricted flow, pump stops running, elapsed time stops, status LEDs flash red, and pump displays fault icon. After 20 seconds in fault, auto-restart is attempted up to 5 times unless full airflow is restored prior to that. If full airflow is not corrected during 5 restart attempts within 5 minutes, the pump ends the run and displays Sample Summary.
Display Type/Parameters High-contrast backlit LCD/Time, date, battery status, flow rate, sample volume, temperature, atmospheric pressure, back pressure, programmed run remaining time, and elapsed run time
User Interface Eight-area capacitive touch screen with auto-dim and locking options
Dimensions 3.2 x 3.8 x 1.5 in (8.1 x 9.7 x 3.8 cm)
Weight 8.3 oz (235 gm)
Certifications/Markings PocketPump Touch Certifications and Markings
Case Material IP 64-rated case, polycarbonate with rubberized anti-static overmolding
Communications with PC Low-energy Bluetooth, requires DataTrac Pro for Pocket Pump TOUCH USB Bluetooth Adapter (Cat. No. 877-94)
Tubing Requires 1/4-in ID tubing



  • Pump Flow Rate : 20 to 500 ml/min
  • PC Compatible : Yes
  • Programable : Yes
  • Intrinsic Safety : Yes
  • Battery Type (Power) : Li-Ion
  • Approx Run Time : 20

Pocket Pump TOUCH with Charger Videos

Introducing the SKC Pocket Pump TOUCH Low Flow Sample Pump SKC’s Pocket Pump TOUCH is the best-in-class instrument for sampling 20 to 500 ml/min. Bluetooth and non-BLE models are available!

Pocket Pump Touch with callouts

Bluetooth communication with PC and DataTrac ProSoftware
Bluetooth® communication with PC and DataTrac® ProSoftware

USB charging with magnetic connector and sure-connect LED indicator
USB charging with magnetic connector and sure-connect LED indicator

Optional quick-connect for secure bag sampling
Optional quick-connect for secure bag sampling
