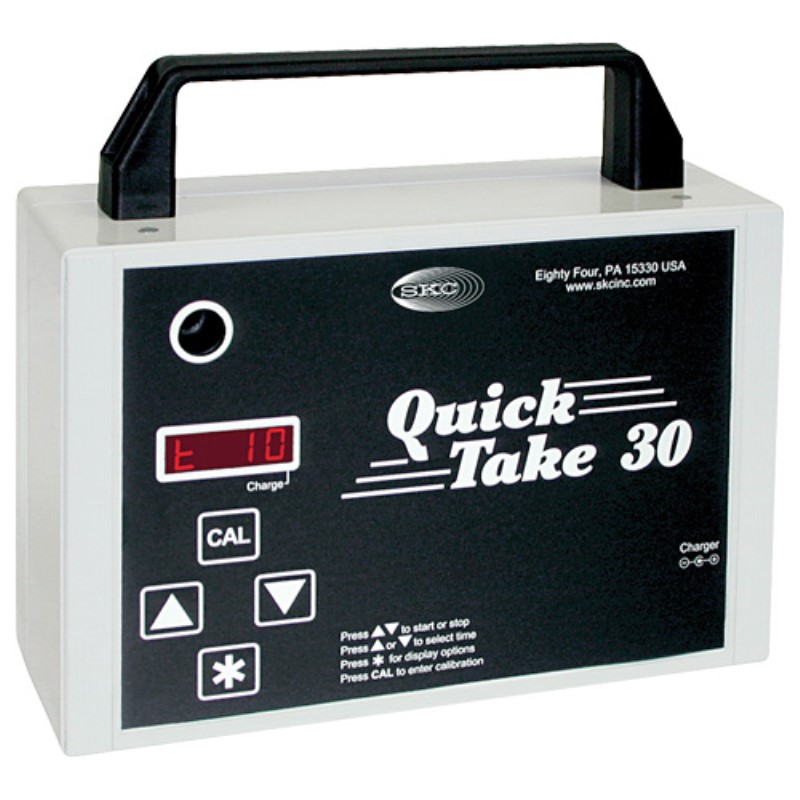

QuickTake 30 Sample Pump and Charger

Please allow your location to be read or register an account with SKC Inc. to view pricing

Part Number: 228-9530

Questions?

QuickTake 30 Sample Pump and Charger Overview

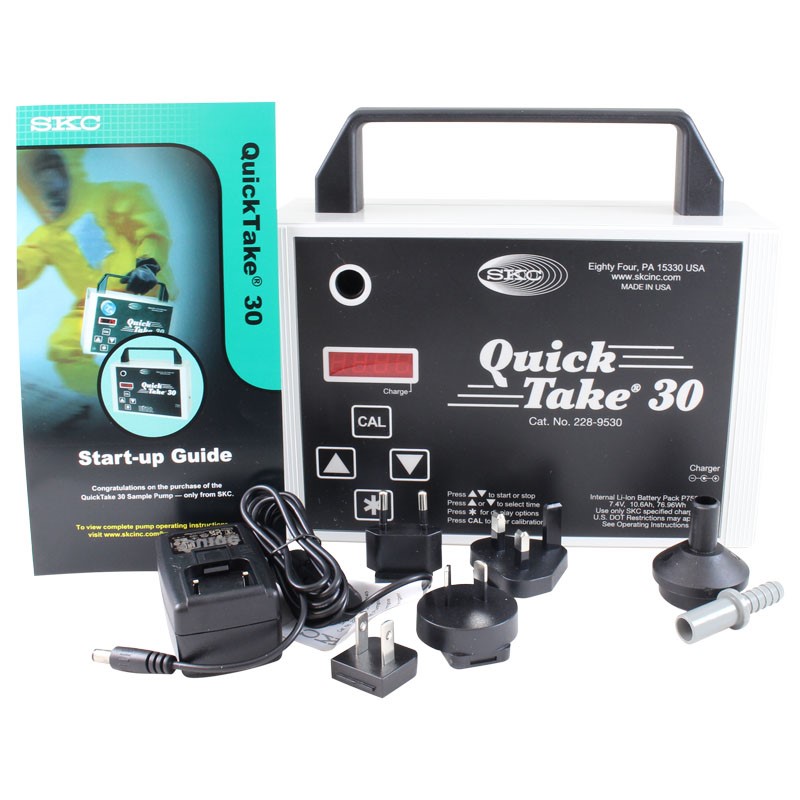

QuickTake 30 (with programmable timer) Sample Pump with Li-Ion battery pack, 110-240 V AC charger/adapter, and cassette/tubing adapter
Flow range: constant flow 10 to 30 L/min
Ideal for use with BioStage® impactor, BioCassette, Versa®Trap cassettes, Air-O-Cell cassettes, wall samplers, or impaction samplers that require flows to 30 L/min

Product Details

Attributes

Specifications

The QuickTake® 30 air sampling pump offers constant flows from 10 to 30 L/min and run times up to 14 hours for sampling particulates. The pump is ideal for use with impactors, microvacuum cassettes, and spore traps.
The QuickTake 30 air sampling pump is not UL Listed for intrinsic safety.

Performance Profile

Flow Range

10 to 30 L/min

Flow Compensation Accuracy

± 5% of set flow

Compensating Flow Back Pressure Range

10 L/min at 90 inches water back pressure
20 L/min at 50 inches water back pressure
30 L/min at 15 inches water back pressure

*Typical Back Pressure of Sampling Media (inches water)*
Flow Rate L/min	10	12	15	20
Filter/Pore Size (µm)
25-mm MCE/0.8	65	80	103	148
25-mm MCE/0.45	138	172	> 200	—
37-mm MCE/0.8	22	28	36	51
37-mm PVC/5.0	9	11	15	21
Compare the information in this table to compensation range to determine appropriate applications.

Power

Rechargeable lithium-ion (Li-Ion) battery, 7.4-volt, 10.4-Ah capacity, 77 Wh, or battery with AC charger/adapter (100-240 V)

Battery Recharge Time
(varies with battery capacity and level of discharge)

Approximately 5 hrs with approved charger

Typical Cumulative Run Time‡

Spore Trap cassettes (VersaTrap): 5 hrs at 15 L/min (battery only)
BioStage viable cascade impactor: 4 hrs at 28.3 L/min (battery only)
25-mm, 1.2-µm MCE filter: 9+ hrs at 10 L/min
To achieve, use QuickTake 30 with a fully charged battery and AC charger/adapter.
37-mm, 0.8-µm MCE filter: 14+ hrs at 10 L/min (battery only)

Note: The AC charger/adapter can be used to extend battery run time, but it is not a battery eliminator. Therefore, it will not provide indefinite run times.

Temperature

Operating: 32 to 104 F (0 to 40 C)
Storage: -4 to 95 F (-20 to 35 C)
Charging: 32 to 113 F (0 to 45 C)

Operating Humidity 0 to 95% non-condensing

Run Time Features

User-selectable features, user-adjustable presets. See Operating Instructions.
Preset timed runs: 1, 2, 5, 10, or 15 min
Manually set continuous run with manual shut-off: 1 to 999 min (repeats 1 to 999-min runs indefinitely until user stops pump or power supply is depleted)
Intermittent sampling: User-set sample periods and sample delays. See Operating Instructions.

Flow Fault Features

If the pump is unable to compensate due to excessive back pressure, the pump will go into flow fault mode. Flow fault features are enabled as the default setting. Flow fault may be disabled at the user’s option. See Operating Instructions.
Flow fault: Flow fault displays immediately. Pump shuts off after 5 seconds.
Fault restart: Pump attempts restart every 10 seconds up to five times.

Media Compatibility

BioStage viable cascade impactor, VersaTrap spore trap cassettes, microvacuum cassettes, and other samplers that require flows to 30 L/min

Tubing

Requires 3/8-inch ID tubing

Housing

ABS plastic

Dimensions

8.4 x 9.3 x 3.5 in (21.3 x 23.6 x 8.9 cm)

Weight

4.8 lbs (2.2 kg)

Noise Level Average < 64 dBA at 3 feet (37-mm, 0.8-µm MCE filter at 16.8 L/min)
