VOC Chek® 575 Passive Samplers for Methanol, Anasorb 747, pk/5

Please allow your location to be read or register an account with SKC Inc. to view pricing
Part Number: 575-007

VOC Chek® 575 Passive Samplers for Methanol, Anasorb 747, pk/5 Overview

Passive Sampler, for Methanol, Anasorb 747, 500 mg, includes secondary diffusion barrier, pk/5

Desorption Efficiency (DE) tubes contain the same sorbent, and mass of sorbent, as found in their associated VOC Chek 575- Passive Sampler.  The sorbent in these tubes is spiked and analyzed by the lab to calculate the desorption efficiency of the sorbent.  The DE is used in the final calculation of concentration when analyzing the passive sampler.  Tube are provided to make it easier, and less wasteful, when determining DE.

  • Passive Sampler Use : Methanol
  • Passive Sampler Sorbent : AnasorbÖ
  • Validation Level : Partial

VOC Chek® 575 Passive Samplers for Methanol, Anasorb 747, pk/5 Videos

SKC VOC Chek 575 Passive Samplers - Ready to Ship! SKC VOC Chek 575 Passive Samplers are the perfect sampling solution for organic vapors. Don’t wait 30 days – our VOC Chek 575 samplers are in stock and ready to ship!

575 Voc Chek Banner

575 Series Passive Sampler for Methanol
Overcomes Limitations of Active Methods

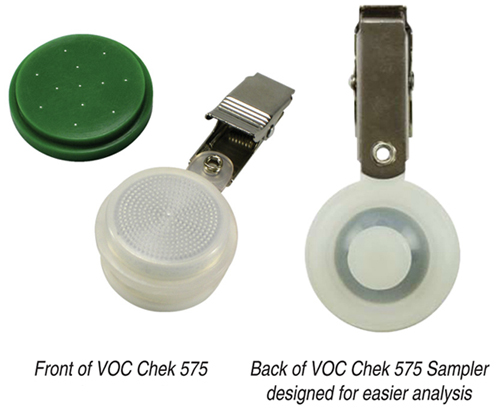

VOC Chek Front and Back

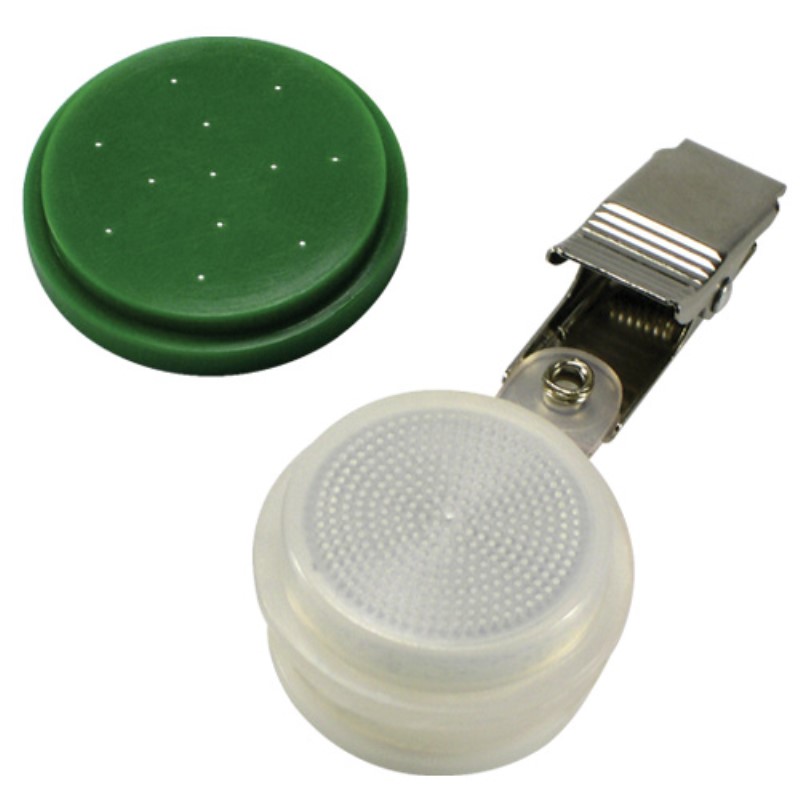

SKC VOC Chek 575 for Methanol
The miniature VOC Chek 575 for Methanol Sampler collects methanol vapors in air without the use of a pump. Vapors simply diffuse from the atmosphere into the sampler at a 1.2 ml/min fixed sampling rate. SKC has validated the sampling rate of the VOC Chek 575 Methanol Sampler along with other critical sampling parameters to meet OSHA/ASTM/ANSI requirements.

Full-shift Sampling with only ONE sampler

The SKC Methanol Passive Sampler collects methanol for up to an 8-hour work shift with superior efficiency. The Methanol Passive Sampler overcomes the short sample times and sample migration concerns of active methods. These samplers are ideal for use in chemical, fuel, wastewater, and hydraulic fracking industries.

Using a VOC Chek Passive Sampler is easy as 1, 2, 3!

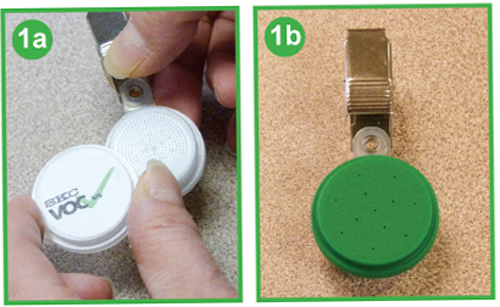

Remove front cap and snap on secondary diffusion barrier.

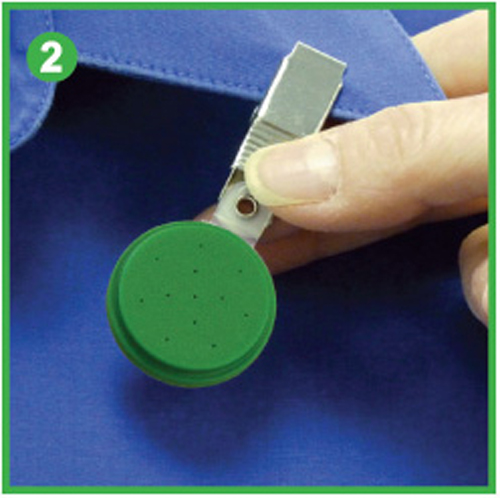

2. Clip in worker's breathing zone.

Clip in worker's breathing zone.

Cap and record information.

Cap and record information.

VOC Chek 575 Series Passive Samplers
Validated to NIOSH Protocol 1

Passive sampling is quite different from active sampling with sorbent tubes. With this fact in mind, NIOSH established validation protocols for evaluating the performance of passive samplers. 1   Protocol validation was developed so that manufacturers could produce passive samplers that reliably assess airborne levels.

For compliance sampling, it is recommended that only passive samplers with full or bi-level validation be used. Passive samplers with lower levels of validation may be used only if verified by validated sorbent sample tube methods.

Validation Level

Passed NIOSH protocol for sampling rate, desorption efficiency, and storage stability. 2


Cassinelli, M.E., Hull, R.D., Crable, J.V. and Teass, A.W., "Diffusive Sampling: An Alternative to Workplace Air Monitoring," A. Berlin, R.H. Brown and K.J. Saunders (Royal Society of Chemistry, London) (eds.), NIOSH Protocol for the Evaluation of Passive Monitors, 1987, pp 190-202.

Kuhlman, C. and Coyne, L., Partial Validation of Methanol Using SKC Cat. No. 575-007 Diffusive Samplers,  July 2014
