VOC Chek 575 Passive Samplers, for ppm-Level Organic Vapors, Anasorb 747, pk/5

Please allow your location to be read or register an account with SKC Inc. to view pricing
Part Number: 575-002

VOC Chek 575 Passive Samplers, for ppm-Level Organic Vapors, Anasorb 747, pk/5 Overview

Passive Sampler, for ppm-level organic vapors, Anasorb 747, 500 mg, pk/5

The Passive Sampler for Organic Vapors collects organic vapors without the use of a pump. The sampler is validated for short-term and eight-hour sampling and 24-hour indoor sampling for some compounds. Use the sampler to test exposure to VOCs such as toluene, tetrachloroethylene, trichloroethylene, xylenes, ethylbenzene, 2-butanone (MEK), hexone (MIBK), benzene, butyl acetates, and styrene. Models exclusive for ethylene oxide and methanol are also available.

  • Passive Sampler Use : Anesthetic Gases
  • Passive Sampler Use : Benzene
  • Passive Sampler Use : ppm-Level Organic Vapors
  • Passive Sampler Use : Styrene
  • Passive Sampler Sorbent : AnasorbÖ
  • Validation Level : Bi-level
  • Validation Level : Calculated
  • Validation Level : Full
  • Validation Level : OSHA
  • Validation Level : Partial

VOC Chek 575 Passive Samplers, for ppm-Level Organic Vapors, Anasorb 747, pk/5 Videos

SKC VOC Chek 575 Passive Samplers - Ready to Ship! SKC VOC Chek 575 Passive Samplers are the perfect sampling solution for organic vapors. Don’t wait 30 days – our VOC Chek 575 samplers are in stock and ready to ship!

575 Voc Chek Banner
575 Series Passive Samplers are now
VOC Chek 575 Series!

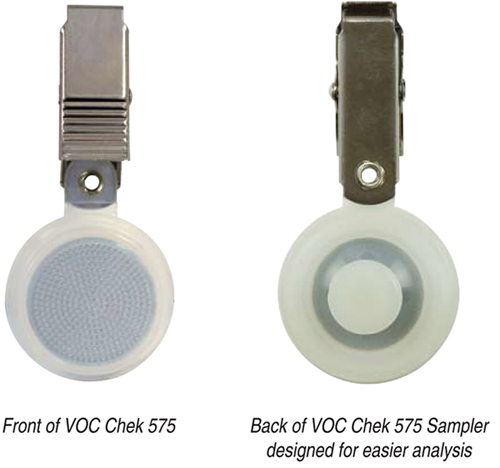

VOC Chek Front and Back

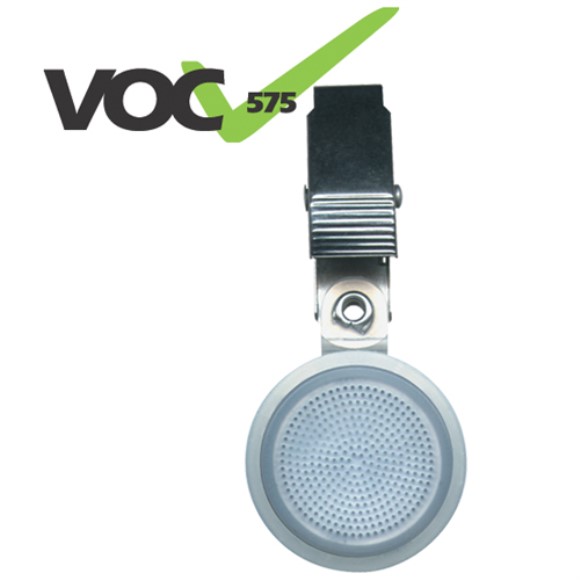

SKC VOC Chek 575 Passive Samplers
Miniature VOC Chek 575 samplers collect organic vapors without the use of a pump. Individual chemicals simply diffuse from the atmosphere into the sampler at a fixed rate. SKC has scientifically validated the sampling rate of the VOC Chek 575 Series passive samplers along with other critical sampling parameters to meet OSHA/ASTM/ANSI requirements. SKC VOC Chek 575 Series Passive Samplers are identified as a viable alternative to active sampling in eight OSHA methods.

Full-shift Sampling with only ONE sampler

The Methanol Passive Sampler collects methanol for up to an 8-hour work shift with superior efficiency. The Methanol Passive Sampler overcomes the short sample times and sample migration concerns of active methods. These samplers are ideal for use in chemical, fuel, wastewater, and hydraulic fracking industries.

Using a VOC Chek Passive Sampler is easy as 1, 2, 3!

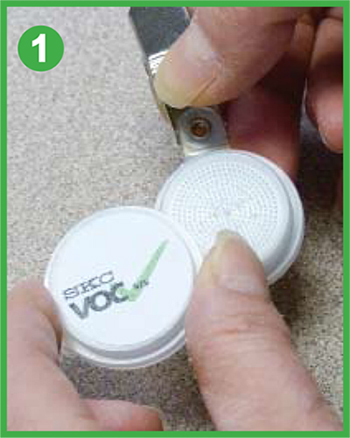

1. Remove front cap.

Remove front cap.



2. Clip in worker's breathing zone.

Clip in worker's breathing zone.

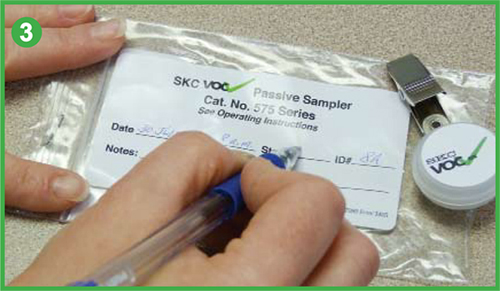

Cap and record information.

Cap and record information.

VOC Chek 575 Series Passive Samplers
Validated to NIOSH Protocol 1


Validation
Passive sampling is quite different from active sampling with sorbent tubes. With this fact in mind, NIOSH established validation protocols for evaluating the performance of passive samplers. 1   Protocol validation was developed so that manufacturers could produce passive samplers that reliably assess airborne levels.

For compliance sampling, it is recommended that only passive samplers with full or bi-level validation be used. Passive samplers with lower levels of validation may be used only if verified by validated sorbent sample tube methods.



Validation Level

Full
Sampler passed stringent testing as outlined in NIOSH and ANSI protocols including desorption efficiency, relative humidity, temperature, concentration, sampling rate and capacity, reverse diffusion, and storage.

Bi-Level
The most volatile member of a related (homologous) series of chemicals has passed full validation; therefore, related less volatile series members require only partial validation to achieve the same level of sampling accuracy (see Guild et al. [DOI: 10.1080/1047322X.1992.10390161] or request a copy from SKC).

Partial
Passed NIOSH protocol for sampling rate, desorption efficiency, and storage stability.

(Not Validated) Calculated
This calculation of a sampling or uptake rate uses the diffusion coefficient of a specific chemical (D) and the cross-sectional area (A) and length (L) of the sampler’s diffusion path (based on sampler geometry).

OSHA
Sampler has been validated by OSHA and is referenced in a published OSHA method.
Compound Active Method/
Tube Cat. No.
Passive Method/
Sampler Cat. No.
Benzene
OSHA 1005
226-01
OSHA 1005
575-002
Butyl acetates
OSHA 1009
226-01
OSHA 1009
575-002
MEK/MIBK
OSHA 16 (MEK)
226-10
OSHA 1004
575-002
Styrene
OSHA 89
226-73
OSHA 1014
575-006
Toluene
OSHA 111
226-81A or 226-01
OSHA 111
575-002
Trichloroethylene/tetrachloroethylene
OSHA 1001
226-01
OSHA 1001
575-002
Trimethylbenzene
OSHA 1020
226-01
OSHA 1020
575-002
Xylenes/ethylbenzene
OSHA 1002
226-01
OSHA 1002
575-002


SKC Passive Sampler for Ethylene Oxide

  • Fully validated and documented performance
  • 8-hour and 15-minute sampling
  • Small, lightweight, and easy to use — no pump required
  • Ideal for hospitals, veterinary clinics, and sterile instrument manufacturers

SKC Passive Sampler for Methanol

  • Small, lightweight, and easy to use — no pump required
  • Contains 500 mg of Anasorb 747
  • Secondary diffusion barrier provides 1.2 ml/min sampling rate
  • 8-hour and 15-minute sampling
  • Ideal for monitoring in the production of formaldehyde and other chemicals, fuel manufacturers, wastewater denitrification, and hydraulic fracturing

References

1.
Cassinelli, M.E., Hull, R.D., Crable, J.V. and Teass, A.W., "Diffusive Sampling: An Alternative to Workplace Air Monitoring," A. Berlin, R.H. Brown and K.J. Saunders (Royal Society of Chemistry, London) (eds.), NIOSH Protocol for the Evaluation of Passive Monitors, 1987, pp 190-202.

2.
Guild, L.V., Myrmel, K.H., Myers, G. and Dietrich, D.F., "Bi-Level Passive Monitor Validation: A Reliable Way of Assuring Sampling Accuracy for a Larger Number of Related Chemical Hazards" Appl. Occup. Environ. Hyg., Vol 7, No. 5, May 1992, pp. 310-317. Reprints available from SKC! Email your mailing address to SKC Inc at skcmktg@skcinc.com.
