Parallel Particle Impactor (PPI), Reusable Aluminum, User-loaded, Respirable, 8 L/min

Parallel Particle Impactor (PPI), Reusable Aluminum, User-loaded, Respirable, 8 L/min

Please allow your location to be read or register an account with SKC Inc. to view pricing
Part Number: 225-383

Parallel Particle Impactor (PPI), Reusable Aluminum, User-loaded, Respirable, 8 L/min Overview

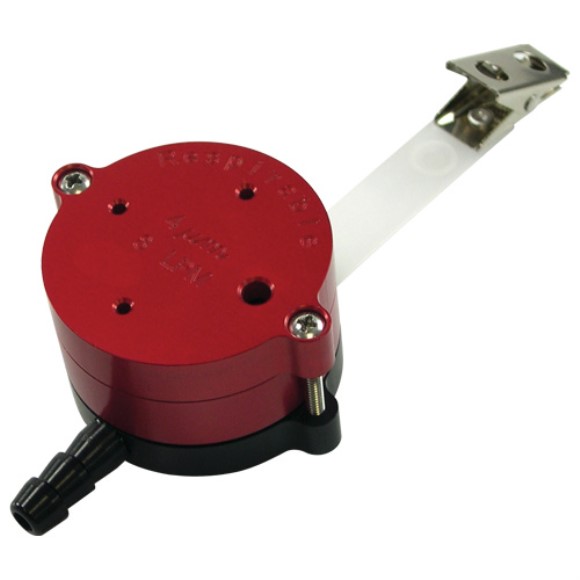

This aluminum Reusable PPI Sampler features four impactors arranged in parallel for precise respirable dust sampling at 8 L/min that meets ISO 7708/CEN respirable criteria. The red color identifies it as an 8 L/min respirable model.
Requires substrates, filters, and supports purchased separately, ea

Impaction-based respirable model Reusable PPI® Samplers contain four impactors arranged in parallel that provide the most precise match to the entire ISO 7708/CEN respirable criteria. Listed in the OSHA Final Silica Rule, these aluminum PPI Samplers are also ideal for NIOSH respirable dust methods. User-loaded pre-oiled impaction substrates effectively trap larger particles for sample integrity while the method-specified filter collects the sample. The PPI design eliminates the tipping sample invalidation often experienced with respirable cyclones, saving you time and money. Respirable model Reusable PPI Samplers are offered for use at 2, 4, or 8 L/min to meet your applications.



Performance Profile

Sampling Rate 2, 4, or 8 L/min
Sample Pump AirChek Series for 2 and 4 L/min, Leland Legacy for 8 L/min
Sample Time Dependent on method used
Sample Media

37-mm, 5.0-µm PVC filter

Use cellulose pad or stainless steel screen for support.
Tubing 1/4-in ID
Impaction Substrate Four 3/8-in diameter pre-oiled porous plastic discs
Analysis Gravimetric or chemical
Body Material Conductive aluminum
Dimensions Height: (clip to exhaust): 4.25 in (10.8 cm)
Diameter: 1.8 in (4.6 cm)
Depth: 1.2 in (3.0 cm)
Weight 3.3 oz (93.6 gm)



  • Sampler Class : Respirable
  • Cut-point : 4 μm
  • Flow rate : 8 L/min
  • Disposable : No
  • Sampler Type : Impactor
  • Calibration Adaptor? : Yes

Parallel Particle Impactor (PPI), Reusable Aluminum, User-loaded, Respirable, 8 L/min Videos

SKC Parallel Particle Impactor (PPI) Samplers The unique, patented SKC Parallel Particle Impactor (PPI®) Samplers are impaction-based and provide a precise match to ISO/CEN size-selection criteria. Respirable PPI Samplers match ACGIH and the ISO 7708/CEN criteria that is specified in the 2016 OSHA final rule on respirable crystalline silica. SKC PPI Samplers are offered in a choice of flow rates for maximum flexibility in pump options, sample duration, and contaminant concentration.

How PPI Works

Only the patented* SKC Parallel Particle Impactor (PPI) Samplers contain four small impactors in the inlet section of the device. Each impactor features a unique 50% cut-point to target a specific one-quarter segment of the ISO/CEN curve resulting in a precise fit along the entire curve. A sample pump pulls air through the inlet nozzle of each impactor in the inlet plate. Particles larger than each impactor’s 50% cut-point are scrubbed and retained on the porous oiled impaction substrate, while smaller particles continue to the standard 37-mm collection filter for analysis.

* U.S. Patent No. 7,073,402

How it works: PPI exploded diagram

PPI Samplers Meet Requirements in OSHA Final Rule on Respirable Crystalline Silica
In its final silica rule, OSHA set a new permissible exposure limit (PEL) of 50 µg/m3 across all industries covered by the rule and abandoned the previous silica PEL formula. In addition, the OSHA final silica rule states that any sampler conforming to the ISO 7708/CEN criteria (50% cut-point of 4 µm) can be used for workplace silica and lists examples of samplers, including the impaction-based SKC PPI Samplers (final rule page 16439). The ISO 7708 criteria have been adopted by NIOSH, ACGIH, and many other global occupational hygiene organizations. Respirable PPI Sampler performance data, relative to the ISO 7708/CEN standard, was published in the Journal of Physics, Conference Series 151, 2009 and was made part of the OSHA Docket used to develop the OSHA final silica rule.

SKC PPI Performance
SKC PPI models were evaluated side by side with other size-selective samplers. Potassium sodium tartrate (PST), dioctyl phthalate (DP), glass spheres (GS), and coal mine dust were used as test aerosol. A load of approximately 6.8 mg of coal mine dust on the PPI substrates did not adversely affect PPI performance.

Collection efficiency of the 2, 4 and 8 L/min respirable PPI Samplers
compared to the ISO/CEN respirable curve
(Click to enlarge)

References

Trakumas, S., Hall, P., Personal Respirable Sampler Containing Four Impactors Arranged in Parallel, Abstracts of 23rd Annual AAAR Conference, Atlanta, GA, 2004, p. 78

Trakumas, S., Salter, E., "Parallel Particle Impactor - Novel Size-selective Particle Sampler for Accurate Fractioning of Inhalable Particles," Journal of Physics: Conference Series 151 (2009), 16 pp., 012060

The link in the reference above is an author-created, non-copyrighted version of an article accepted for publication in the Journal of Physics: Conference Series 151. IOP Publishing Ltd. Is not responsible for any errors or omissions in this version of the manuscript or any version derived from it. Go to http://dx.doi.org and enter doi: 10.1088/1742-6596/151/1/012060 for the definitive publisher authenticated version.

Trakumas, S., "High-flow Personal Respirable Dust Sampler for Increased Sensitivity," Poster 261, AIHce 2010, Denver, CO

Trakumas, S., "High-flow Personal Sampler to Monitor Exposure to Respirable Crystalline Silica at New Lower TLV, " IOHA 2010 8th Conference Book of Abstracts, Rome, p. 59

Trakumas, S., Salter, E., "High-Flow Personal Sampler to Monitor Exposure to Respirable Crystalline Silica at New Lower TLV." IOHA 2010, http://goo.gl/EzWm7m (PowerPoint Presentation)

ISO/CEN 7708:1995 (2008), Air Quality — Particle Size Fraction Definitions for Health-related Sampling, search on 7708

Stacey, P., Thorpe, A., and Echt, A., “Performance of High Flow Rate Personal Respirable Samplers When Challenged with Mineral Aerosols of Different Particle Size Distributions,” Ann. Occup. Hyg., 60, 2016, pp. 479-492, http://annhyg.oxfordjournals.org/content/60/4/479.full.pdf?etoc

OSHA Final Rule on Respirable Crystalline Silica, http://www.osha.gov/silica/
